Brembo Brake disc 09.A895.11
300 mm vented front disc for the Mercedes-Benz Sprinter 316 CDI
- Art. no.
- 09.A895.11
- EAN
- 8020584238868
- 300mm
- 28mm
- Vented
SKU BRE-09A89511 · EAN 8020584238868
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 67 · Next day
- Oslo Alnabru26
- Bergen Kokstad8
- Trondheim Tiller14
- Stockholm Västberga29
- Gothenburg Hisings Backa28
- Rotterdam Waalhaven36

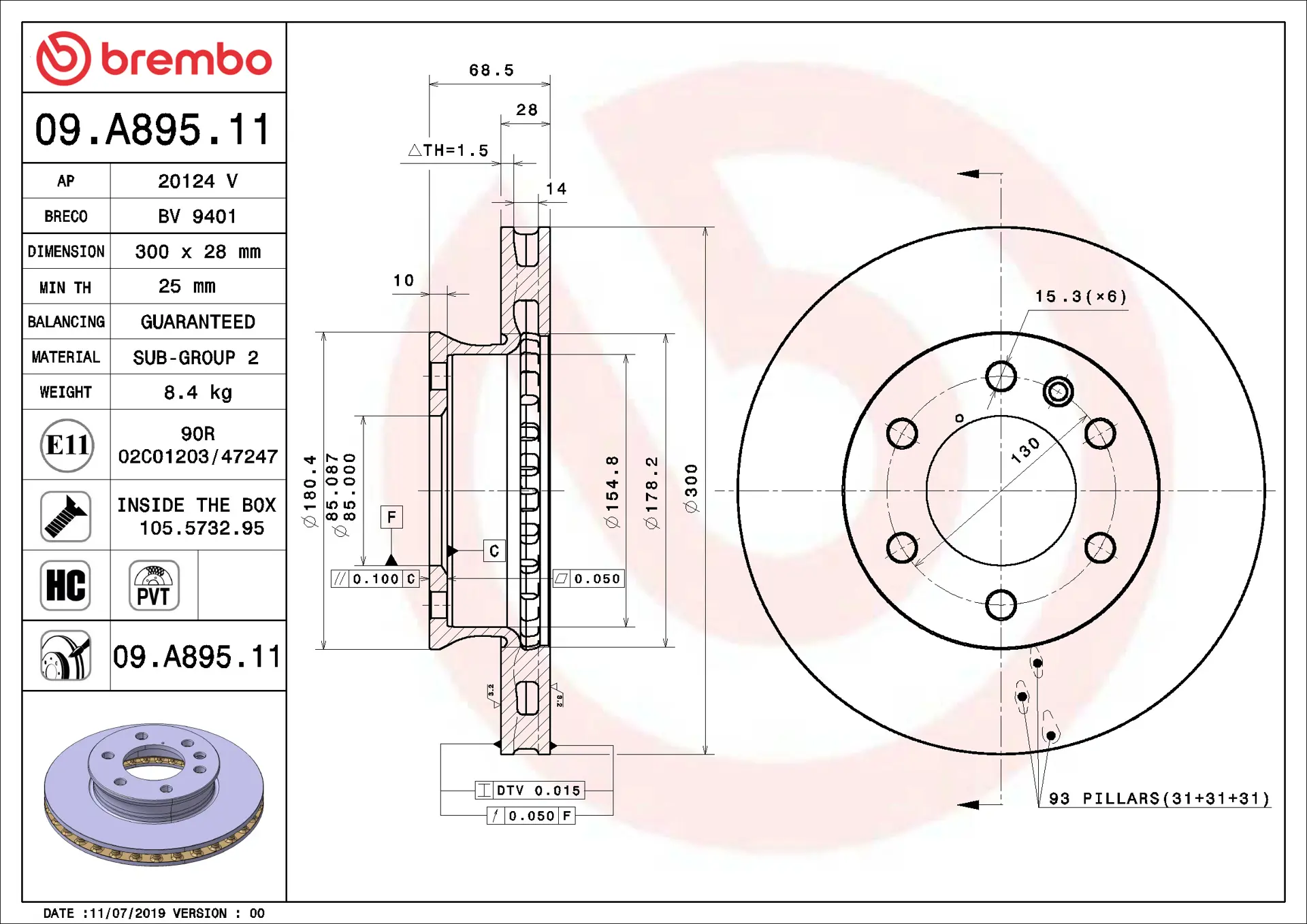

Specifications
Brake disc
- Disc type
- Vented
- Diameter
- 300mm
- Thickness
- 28mm
- Minimum thickness
- 25mm
- Height
- 69mm
- Centering diameter
- 85mm
- Number of holes
- 6
- Coated (anti-corrosion)
- ✓ Yes
- High-carbon cast iron
- ✓ Yes
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| Mercedes-Benz | 9074211901 |
| Mercedes-Benz | 9104210000 |
| Mercedes-Benz | 910421000007 |
| Mercedes-Benz | 9104210100 |
| Mercedes-Benz | A9074211901 |
| Mercedes-Benz | A9104210000 |
| Mercedes-Benz | A9104210100 |
Cross-references
Equivalent parts from other brands.
| Brand | Art. no. |
|---|---|
| ATE | 24012802031 |
| Bosch | 0986479R78 |
| febi bilstein |
Why this one
01
300 x 28 mm
Vented disc, 6 holes, 85 mm centre bore, minimum thickness 25 mm.
02
UV-painted finish
Painted hat and edges keep rust off the hub face and cooling vanes.
03
High-carbon iron
Extra carbon damps vibration and helps the disc handle heat.
04
Sold singly
One disc per box; order two for an axle.
On the job
The job it does
OE-equivalent vented disc for the front axle of the Mercedes-Benz Sprinter 316 CDI. New it measures 300 x 28 mm and it must be replaced at 25 mm. The high-carbon iron damps vibration and copes better with heat, which helps against judder. Pillar-type (PVT) cooling vanes resist heat cracking better than straight vanes.
Fitting it
Discs are always changed in axle pairs, and this one is packed singly, so order two. Fit new front pads at the same time, clean the hub face back to bare metal and check the caliper slide pins. A brake fluid change is often due at the same visit.
