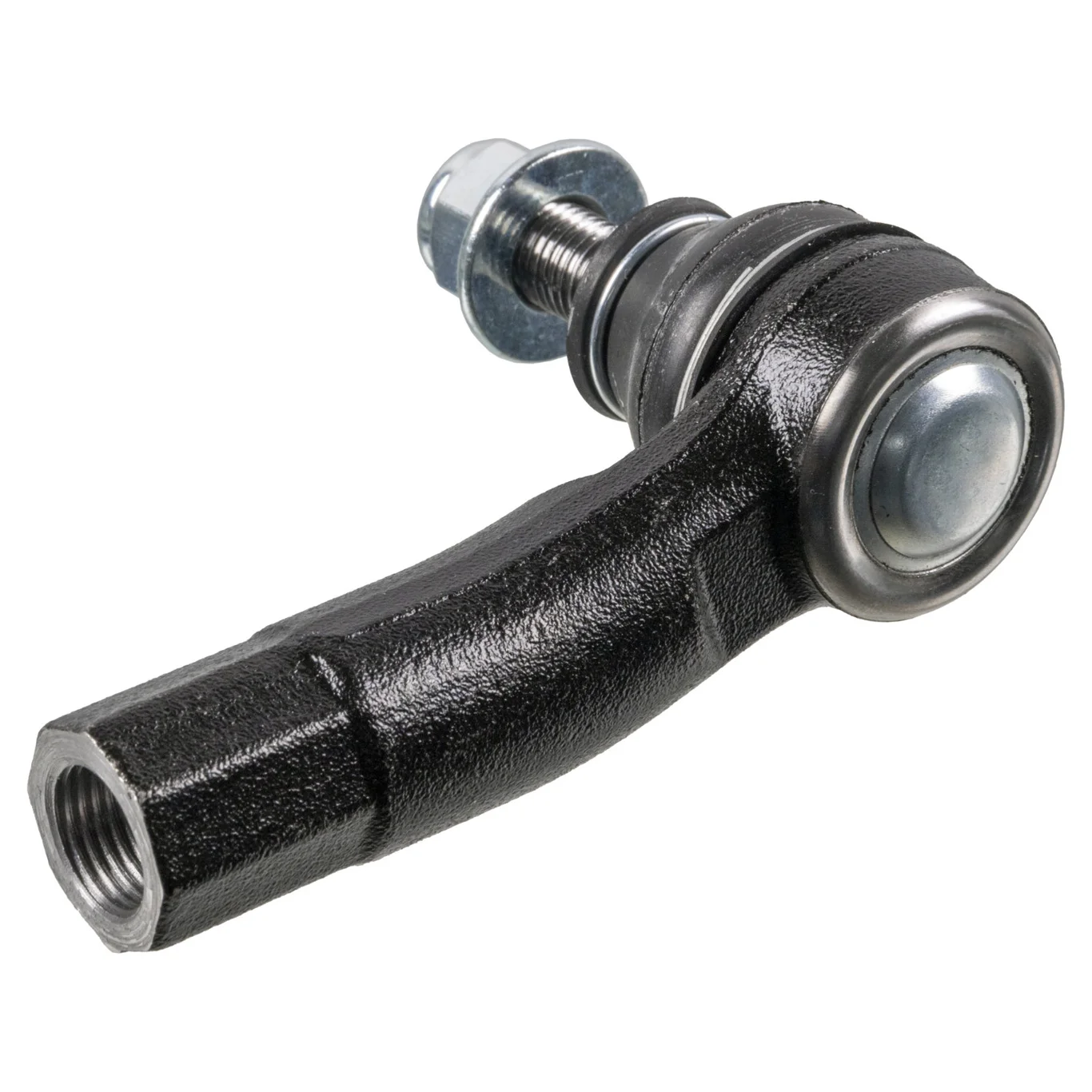

febi Tie rod end with lock nut 26096
Left outer track-rod end for MQB Golf and Octavia
- Art. no.
- 26096
- 95mm
- M12x1.5
SKU FEB-26096
From the central warehouse — delivered next working day · Log in to see your branch’s delivery rounds.
Stock
Central warehouse · 102 · Next day
- Oslo Alnabru0
- Bergen Kokstad6
- Trondheim Tiller0
- Stockholm Västberga5
- Gothenburg Hisings Backa0
- Rotterdam Waalhaven5
Specifications
Steering and suspension
- Length
- 95mm
- Thread size
- M12x1.5
- Ball joint included
- — No
- Bushes included
- — No
- Nuts and bolts included
- ✓ Yes
Technology
Numbers
OE numbers
Vehicle makers’ own part numbers this part replaces.
| Maker | OE number |
|---|---|
| VW | 1K0 423 811 J |
| VW | 1K0 423 803 A |
| VW | 1K0 423 811 A |
| VW | 1K0 423 811 B |
| VW | 1K0 423 811 E |
| VW | 1K0 423 811 F |
| VW | 3C0 423 811 B |
| Skoda | 1K0 423 811 J |
| Skoda | 1K0 423 811 A |
| Skoda | 1K0 423 811 E |
Why this one
01
Lock nut supplied
New self-locking nut comes in the box.
02
95 mm body
Shorter version; Octavia may take 37593 instead.
03
M16 rack thread
Internal thread to the original track rod.
04
Left-hand side
Right-hand partner is 26097.
On the job
The job
A worn outer track-rod end is an inspection fail and shows up as play at the wheel and uneven tyre wear. This is the left-hand end for MQB Golf and Octavia: 95 mm body, M16 x 1.5 internal thread for the rack and M12 x 1.5 ball stud, with lock nut supplied. On Octavia III and IV febi also lists the longer 37593, so compare with the old part.
Alongside it
Count the turns when unscrewing the old end to keep the toe close, then align the car. Replace the right-hand end, 26097, at the same time if it shows play, and check the inner tie rods and drop links while the wheels are off.
